Paper Bowl Machine Forming Hot Selling Forming Fully Automatic Disposable Paper Plate Coffee Tea Paper Cup Making Machine
Best quality High Speed Paper Cup Making Machine price PRODUCT DESCRIPTION Full servo driven driven technology throughou
Send your inquiryDESCRIPTION
Basic Info
Model NO. | 1350-T |
Logo Printing | Without Logo Printing |
Certification | CE |
Customized | Customized |
Condition | New |
After-sales Service | 24 Hours on Line |
Cup Size | 4-16 Oz |
Material | 170-380 GSM Single or Double PE/PLA |
Working Air Source | 0.6-0.8 MPa |
Weight | 3000 Kgs |
Power Supply | 34 Kw |
Transport Package | Strecth Film, Wooden Case Package |
Specification | 2460x1620x1780 mm |
Trademark | GCM |
Origin | China |
HS Code | 8441309000 |
Production Capacity | 20 Sets |
Product Description
Best quality High Speed Paper Cup Making Machine pricePRODUCT DESCRIPTION
Full servo driven driven technology throughout the entire machine. Servo sysetm drives work independently to control each station with remarkable accracy and work together to coordinate the synchronized motion.
MAIN FEATURES
1. Paper cup bottom and top forming driven mechanism 2.The silicone oil lubrication is automatic control, will not leakage. 3.The inside system use the SERVO system technology, more stable and fast, can make sure the speed.4.Paper cup servo indexing mechanism, replaced the traditional paper cup machine which uses the geneva indexing meachnism.5. Paper cup blank shuttle &rotary placer mechanism
Technical parameter:
Name | Servo type high speed paper cup making machine |
Model | GC-150 |
Cup size arrange | 4-16 oz |
Raw material | One-side or two-side PE /PLA coated paper (Single PE or Double Pe / PLA coated paper ) |
Speed | 140-160 pcs/min |
Suitable paper weight | 170-380 GSM |
Air supply | 0.6 MPA ( running consumption 0.4 Nm3/min ) |
General power | 34 kw ( Running consumption is 14 kw) |
weight | 3000 kgs |
votage power | 380v, 50hz |
Machine Dimension (L x W x H ) | 2460 x 1620 x 1780 mm |
Related Products
-
Side Sealing Bag Making Machine
-

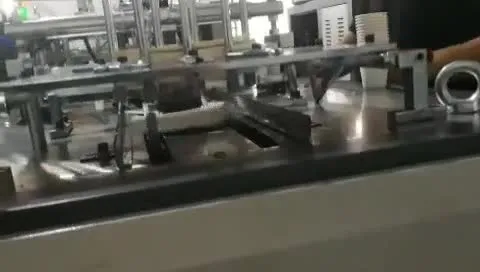

All Types of Paper Cups and Paper Bowls Forming Machine
-
